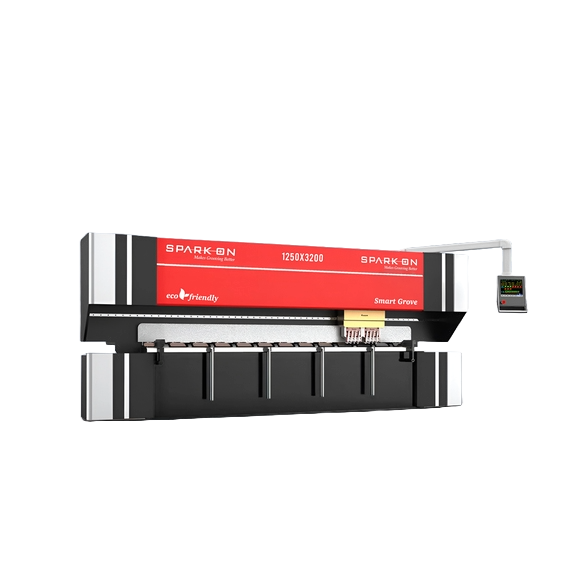

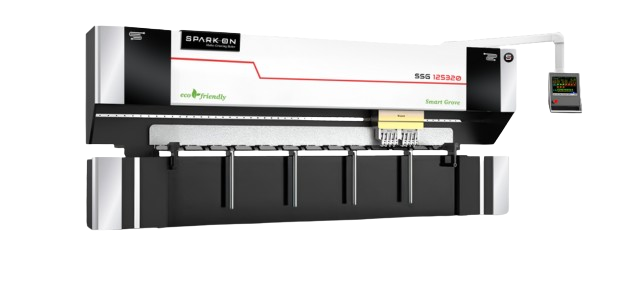

CNC V GROOVING

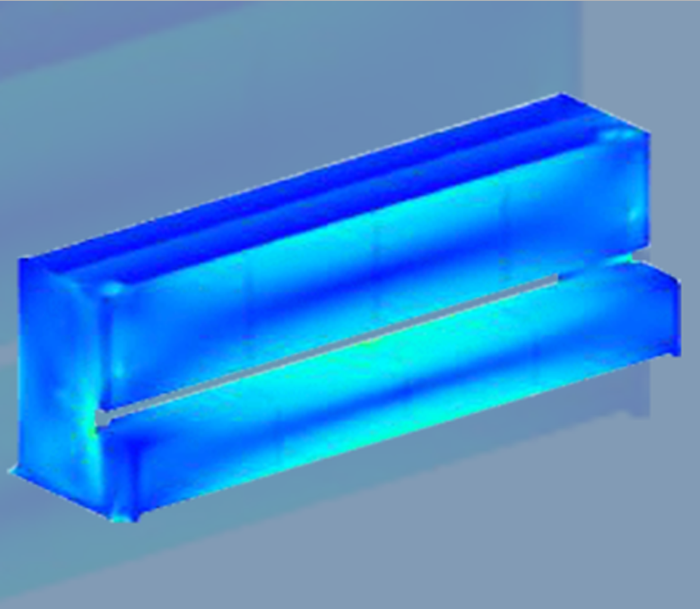

The frame steel plate is processed by a large gantry center with hight precision.The frame is processed by automatic welding equipment and the welding seam is uniform.This ensure the high rigdity of the entire frame.

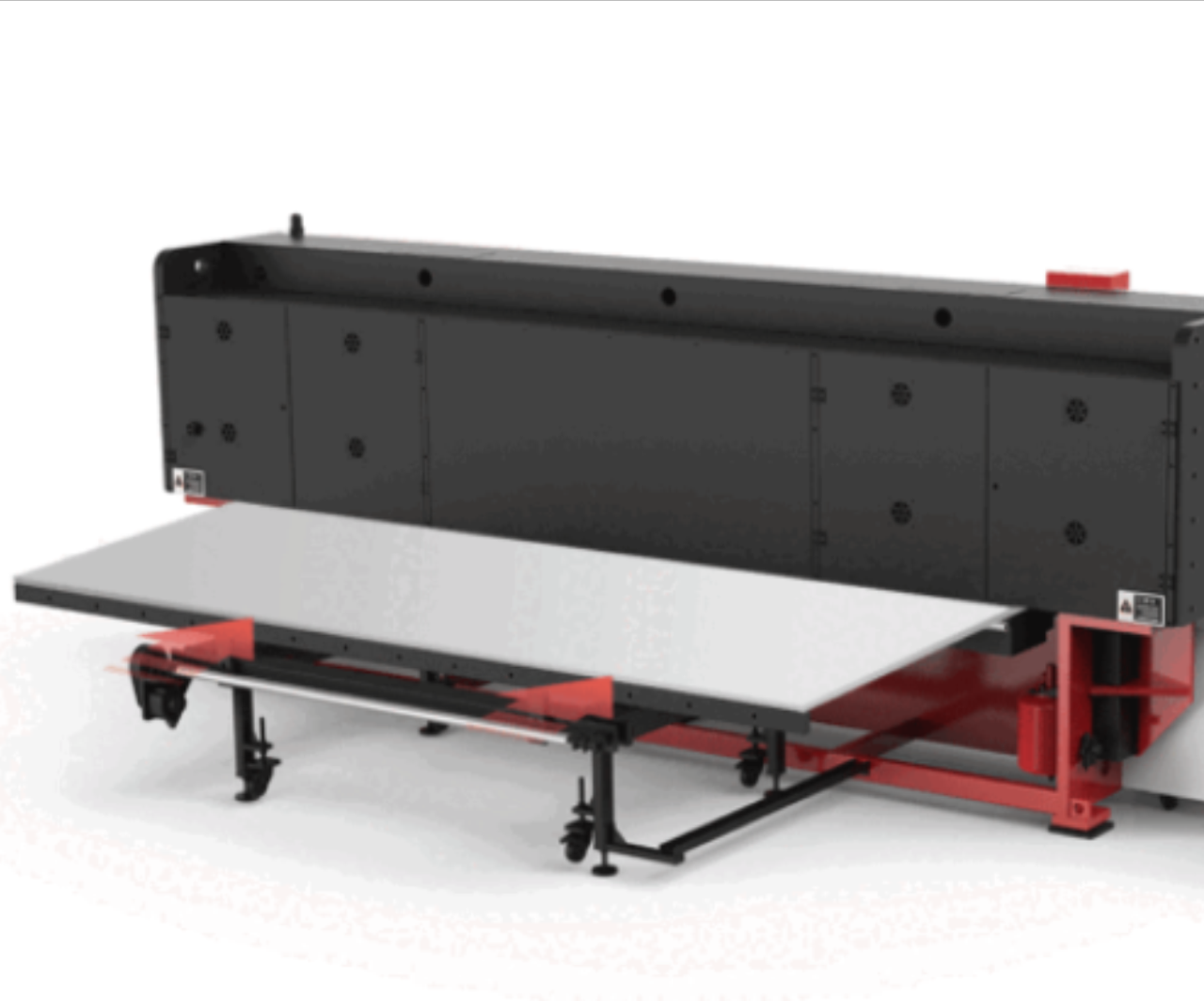

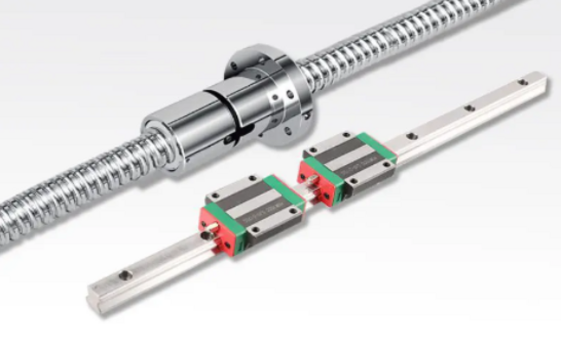

The plate is fed into machine by back support devices and the feeding tolerence is <+0.03mm. The Plane of the pallet is strengthened to make it more wear-resistant.
Content Model
Required Parameter HRK1250-3200
Required Parameter HRK1250-4000
Required Parameter HRK1500-3200
Required Parameter HRK1500-4000
Required Parameter HRK2000-4000
Plate Thickness
0.4-6mm
Plate Length X Width
1250x3200mm
1250x4000mm
1500x3200mm
1500x4000mm
2000x4000mm
Grooving Speed/Speed is changeable or not
5M-70M/min (The speed is changeable)
5M-70/min (The speed is changeable)
Feeding Speed
0.5-20M/min
0.5-20M/min 0.5-20M/min
Min. Setting Unit in Y-axis
0.01mm
Positioning Precision in Y-axis
±0.05mm
Min. Setting Unit in X-axis
o.oimm
Positioning Precision in X-axis
Min. Setting Unit in Z-axis
0.01mm 0.01mm
Positioning Precision in Z-axis
±0.02mm

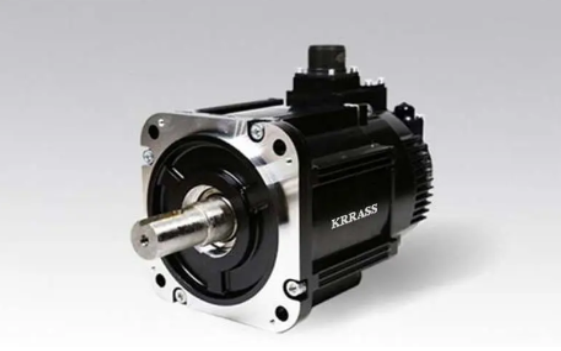

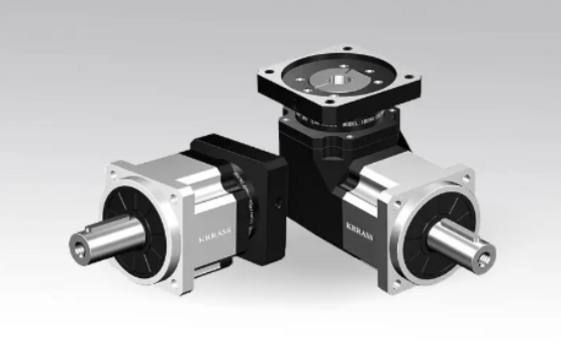

X-axis Motor Power
4.5KW
Y-axis Motor Power
2KW
3KW
4KW
5KW
Z-axis Motor Power
0.4KW
Workbench Planeness
±0.01mm
±0.01mm ±0.01mm
Feeding Way
Back feeding
Workbench is replaceable or not
Replaceable (Exchangeable as well)
Replaceable (Exchangeable)
Workbench is quenched or not
Yes
Number of Cutter
4 PCS
Max. Depth for one-time Grooving
1.0mm
Max. Grooving Depth
3.0mm
Outline Dimension
5000*2500*2100mm
5800*2500*2100mm
5000*2750*2100mm
5800*2750*2100mm
5800*3250*2100mm
Weight
9500kg
10500kg
10200kg
11200kg
11600kg
