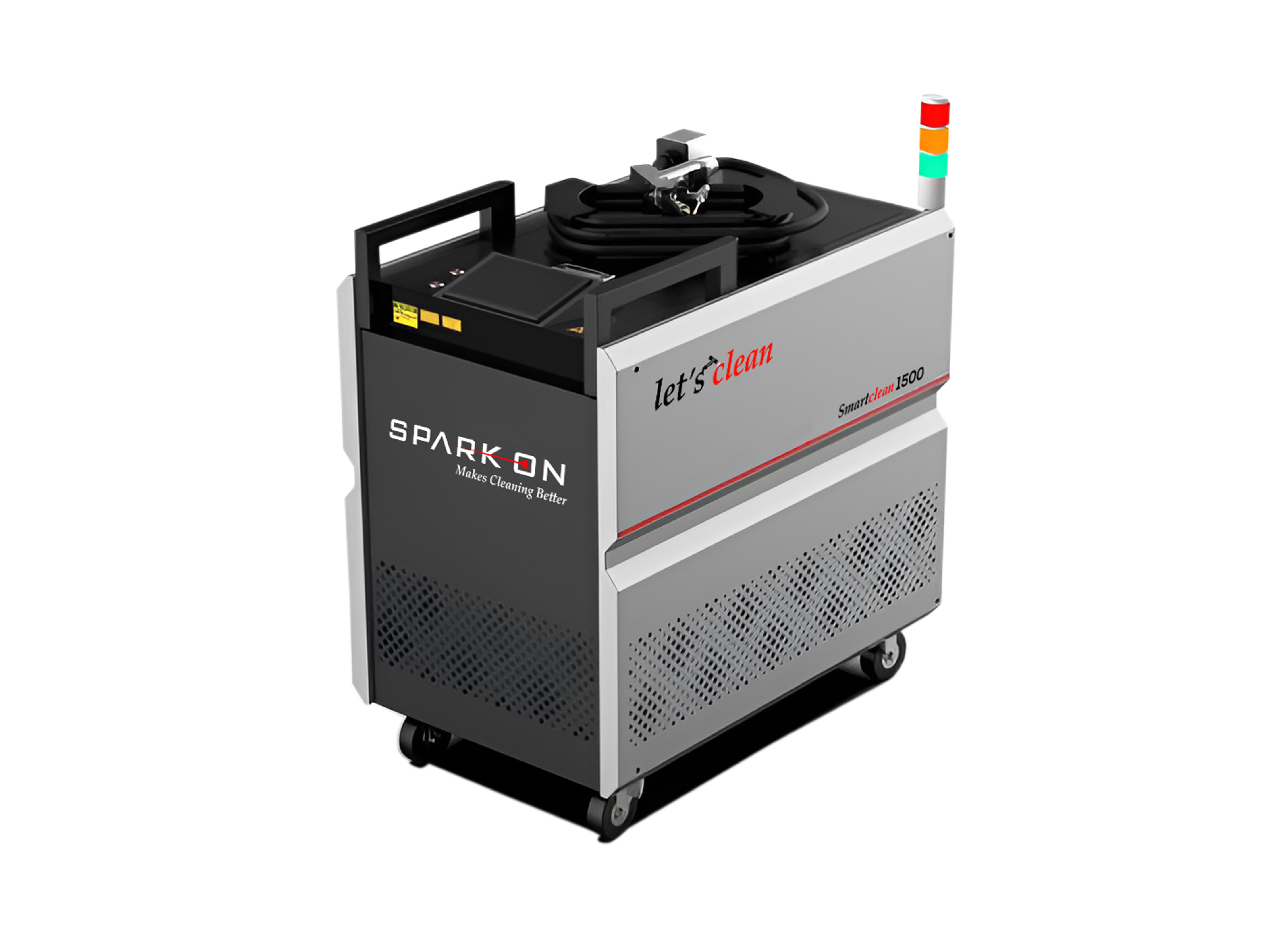

FIBER LASER CLEANING MACHINE

OT Series

Core Technology

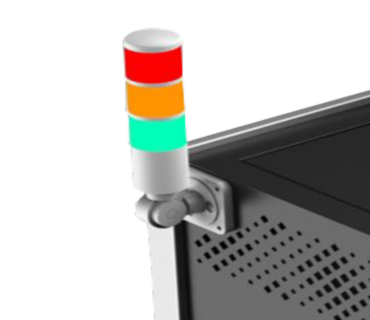

Unique three-color light safety alarm device, your safety butler, to ensure your safety at any time. The yellow light is on when the machine is in standby mode, the green light is on when the machine is running, and the red light is on when the alarm is on.

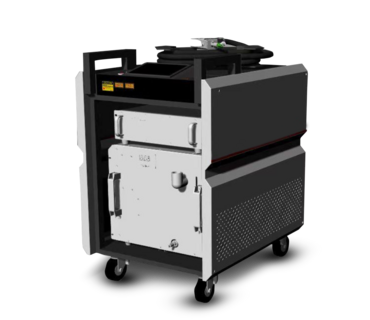

The laser and chiller are separated for better cooling effect; the cleaning head is placed on the top of the machine for easy access, and the optical fiber line is equipped with a protective cover for wear resistance.

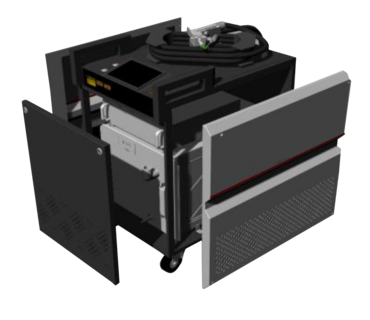

Optimize the internal structure, use the space rationally, and minimize the transportation cost.

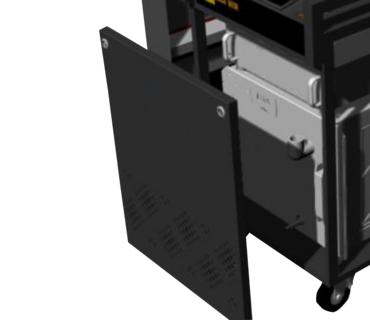

The front door has a hidden buckle design, which is convenient for maintenance and repair while ensuring safety

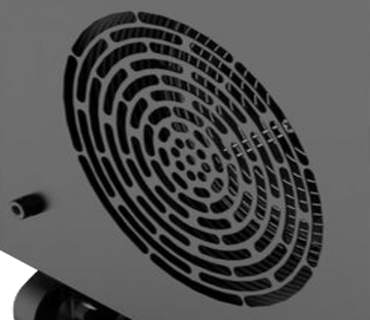

Three sides are hollowed out, and the rear air outlet increases air circulation, optimizes heat dissipation, and extends the service life of the laser.

Detailed assembly, 20 years of experience in laser cleaning machine assembly helps you control product quality and win customer trust. According to European export standards, all parts are CE certified

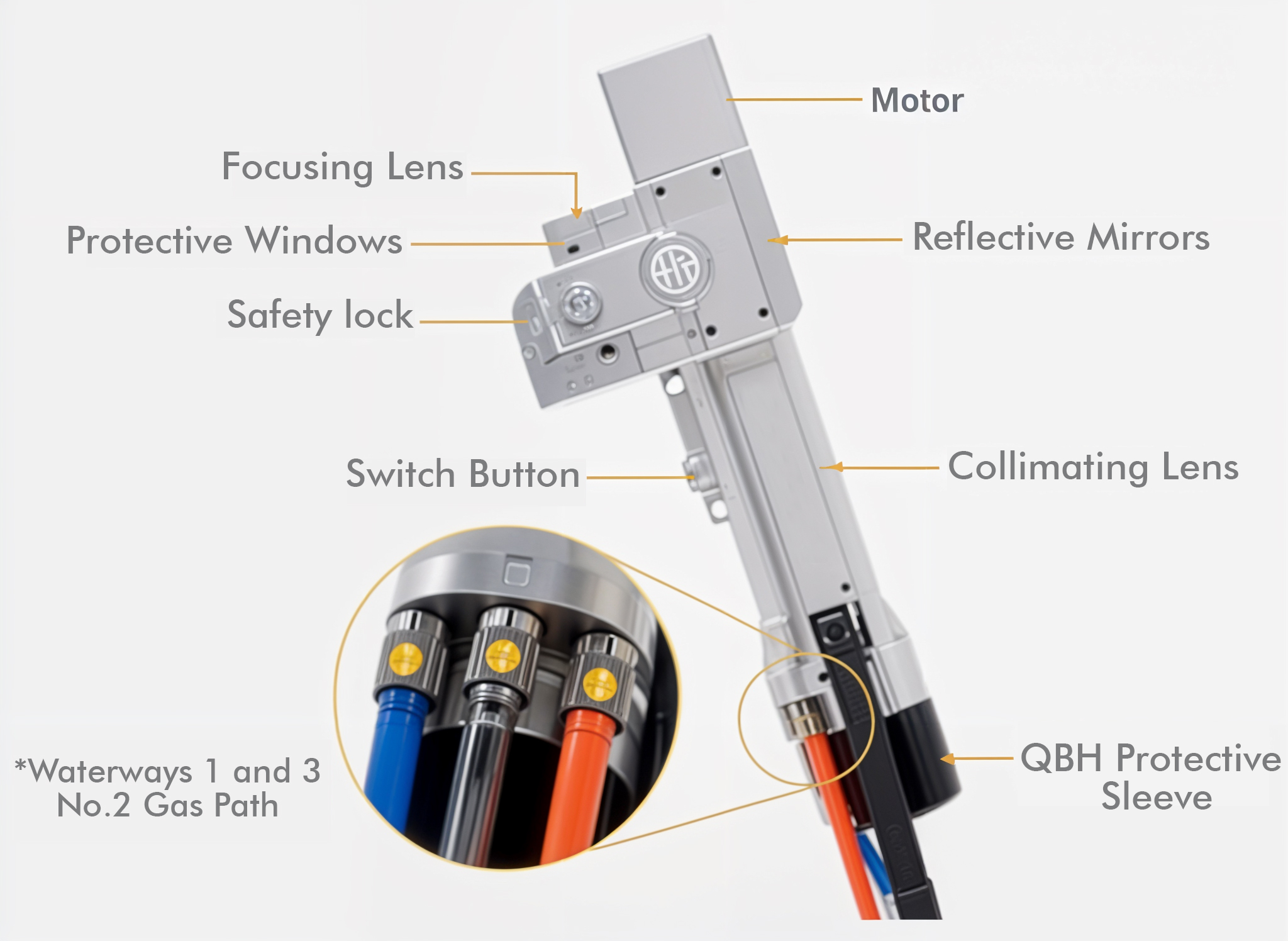

Handheld Laser Cleaning Head



Product number

SUP22C Handheld laser cleaning head

Power level 3000W
Scope of use s3000W
Collimation focal length 60mm
Focus distance 400/800mm
Maximum air pressure 15Bar
Light spot adjustment range Line 0-300mm
Applicable wavelength 1070nm
weight 1.0kg

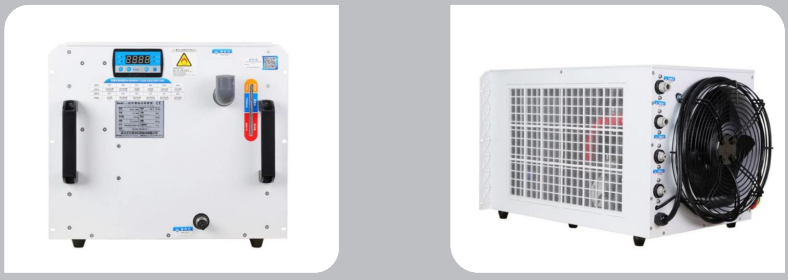

Chillar





Machine Parameter


Model

SC-1500

SC-2000

SC-3000

Laser wavelength 1080+10nm
Operating Mode Continuous / Modulation
Maximum modulation
frequency
20KHz
Integrated Cable
Length
10m
Scan Width 0-6mm
Input Voltage AC220V+10% AC380V+7%
Visual Positioning Red dot
Water cooling Cooling method
(distilled water,deionized water or pure water as medium)
Package dimensions 1650>730x1220mm 1700*730*1220mm
Net weight 170KG 195KG
Gross weight 180KG 205KG
Water tank capacity 13L (14-15L of water to be added)


Cutting Samples
