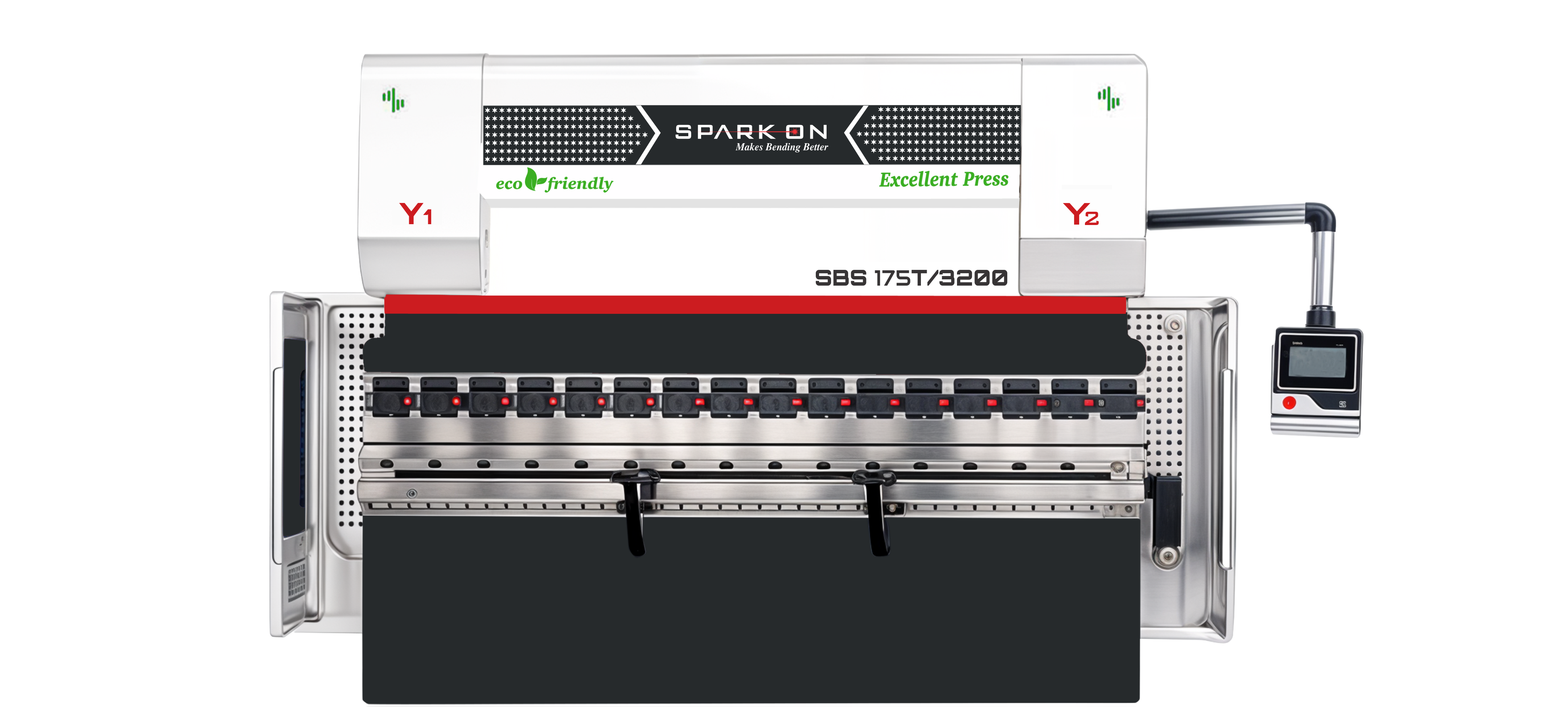

SBS Series
The main motor is a high-performance servo motor. Using single servo pump control technology, it is a cost-effective, environmentally friendly and energy-saving solution
Main motor servo motor, which realizes on demand functions and significantly reduces electricity expense The servo pump system only rotates when needed, and the comprehensive noise is reduced by 30% The control mode of torque limit and analog speed is adopted to eliminate the closure and overflow of the valve and greatly reduce the oil temperature Extend service life and reduce maintenance costs
► Cost Effective Hybrid Electric Drive System
► Solution for customers that need a high-yield, high-performance machine
Name
Bending Pressure
Bending Length ( A)
Column Distance (B)
Throat Depth(C)
Slider Stroke
Max. Opening Height(F)
Y1 ,Y2-axis Down Speed
Y1 ,Y2-axis Back Stroke Speed
Y1 ,Y2-axis
X-axis Max.Distance
Work piece Linear Degree
Back Gauge Positioning Accuracy
Back Gauge Repeat Positioning Accuracy
Main Motor Length* Width* Height
Weight
TYPE
(kn)
(mm)
(mm / sec)
(Mm/m)
(kw)
(T)
50T1600
500
1600
1250
205
160
540
230
140
0.01
600
0.15
± 0.02
± 0.01
5
2200*1450*2155
3.9
80T/2500
800
2500
2000
350
170
570
± 0.05
8.7
3220*1780*2650
5.8
110T/2500
110
410
200
220
> 0.15
3240*1780*2680
7.8
110T/3200
1100
3200
2700
4030*1780*2680
8.2
110T/4000
4000
3500
4830*1780*2780
10
135T/3200
1 350
10.8
4030*1790*2750
9
135T/4000
1350
4830*1790*2850
11.2
175T/3200
1750
13.2
4050*1800*2730
10.2
175T/4000
4700*1800*2830
12.1
175T/5000
5000
4100
90
5700*1800*3080
15.8
175T/6000
6000
5100
6700*1800*3180
18.8
210T/3200
2100
16.7
4020*1850*2850
12.3
210T/4000
4820*1850*3100
14.3
210T/5000
130
5820*1850*3250
210T/6000
6820*1850*3350
23.5
250T/3200
250
620
21.4
3500*1700*3350
15.5
250T/4000
4500*1700*3350
18
250T/5000
5500*1700*3350
19
250T/6000
..--- 0.15
6500*1700*3350
22
320T/3200
450
300
670
150
...-. 0.2
320T/4000
._--- 0.2
21
320T/5000
..>- 0.2
23
320T/6000
._- 0.2
25
4001/3200
..?-- 0.2
26.9
4001/4000
> 0.2
4001/5000
4001/6000
0.2
27
5001/4000
33
4500*1900*3350
42
5001/5000
5500*1900*3350
47
5001/6000
6500*1900*3350
55
Low worktable has an automatic crowning compensation uint; com-pensation amount is automatically set up by CNC system, with guar-antee a same bending angel on full length. The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.
Improved Machine Performance
67%
High Performance Servo Valve System: REXROTH/HAWE, GermanyFully closed-loop synchronous control, machine working with high-speed and stable

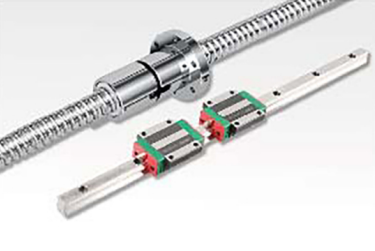

Imported ball screw drive, linear guide rail guide, Double linear guide construction,to ensure the position-ing accuracy.Multistage stops to increase the positioning range,make the bending more convenient.
Accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and material.
Good wear resistance and low friction coefficient. No oil lubrication or less oil lubrication, reduce maintenance times or avoid maintenance.
After forging and quenching, it is durable. High preci-sion, high straightness and high repeatability, and finally obtain the ideal bending effect

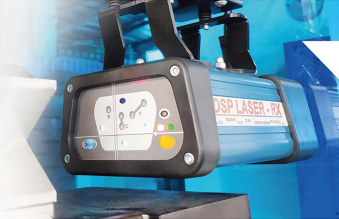

The DSP laser protection device imported from Italy can comprehensively and effectively provide the safety protec-tion of the bending machine and protect the personal safety of the operator.
When the workpiece is bent, the support plate can realize the turning following function. The following angle and speed are automatically calculated and controlled by the NC system, and can move left and right along the linear guide rail.
The use of laser angle measurement system can ensure a stable workpiece bending angle and improve the efficiency and stability of automatic machining.

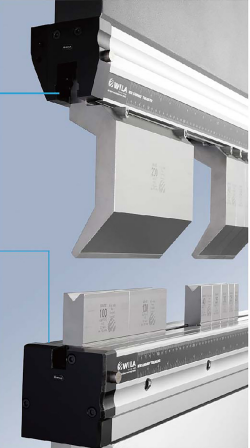

Holland WILA Upper Tool Clamping Systems
The upper die is hydraulically clamped, and the clamping and loosening action is automatically controlled by electricity. The clamping force is large and reliable, and the die change is easy and efficient.
Holland WILA Lower Tool Holders
Lower die hydraulic clamping device, clamping and loosening action is automatically controlled by electricity, and die change is easier and more efficient.
X axis adopts ball screw and linear guide,ensure high synchronization accuracy and very long life.Widened and extended custom stop fingers,Finger support frame with double linear guide,Meet your requirements.
X axis move front and rear, R axis move upward and downward,Z1 axis and Z2 axis are two finger stops move left and right, X1 axis is finger stop moving front and rear, 5 axis controlled by CNC controller to make linkage positioning precisely.
The back gauge includes high rigidity big base, X-axis drive mecha-nism, R-axis drive mechanism and z-axis drive mechanism; according to the needs of processing parts, the stopper finger can be automati-cally adjusted to the required accurate position to ensure the accurate positioning of the workpiece, so as to process the qualified workpiece.
"Hot-key" touch navigation 101" high resolution colour TFT Up to 4 axes (Y1,Y2 + 2 aux axes) Crowning control Tool / material / product library Servo and frequency inverter control Advanced Y-axis control algorithms for closed-loop as well as open-loop valves TandemLink (option) USB memory stick interfacing Profile-T offline software
2D touch graphical programming 15" high-resolution TFT true color display Bending process calculation Deflection compensation control Servo and drive control modes Advanced Y-axis control algorithm, you can control the closed-loop valve can also control the open-loop valve USB interface
2D Touch graphical programming. 3D Product graphical simulation display 17" High-resolution TFT Color Display Full Windows application package Compatible DELEM modular structure USB, Peripheral Interface User program applications under multi-tasking environment Angle detecting sensor interface
3D and 2D graphical touch screen programming mode. 3D visualisation in simulation and production. 17"high resolution colour TFT. Full Windows application suite. Delem Modusys compatibility(module scalability and adaptivity). USB,peripheral interfacing. Open system architecture. Sensor bending &correction interface.
12 'color LCD display, touch screen, icon recognition function; The "EasyBend' page is processed with easy single bending. The fully efficient bending programming can meet the needs of mass production and processing. Automatically calculate bending angle, main pressure and deflection com-pensation; Automatic calculation of bending data; Automatic calculation of pressure and deflection compensation; automatic calculation of upper die depth; Angle, rear gear correction, 2D graphics programming; Automatically simulate the bending sequence and provide the best bending scheme (option).
15 "modern streamlined glass mirror touch screen, which can be used with gloves. User friendly man-machine interface, intuitive programming and easy to set navigation function (automatic optimization of machine parameters). 2D finger drawing programming (touch file) and accurate 2D program creation. Automatic bending step calculation. Easybend page to facilitate single part bending. Larger storage capacity. Internal backup and storage functions. Wireless communication function for diagnosis and upgrade (using laptop).
19 "modern streamlined glass mirror touch screen, which can be used with g loves. Based on cybtouch software, graphical operation interface, easy to learn and use. The unique automatic navigation debugging function can easily com-plete the machine tool debugging. It can control various front and rear material retaining combinations, such as x-axis, x-stop finger, x-slave axis, r-slave axis, Z-axis and follow-up material support. Via CANopen and EtherCAT ® The bus can be extended to control more axes. Open system architecture realizes user customization through user cycles and plug-in modules. The button icon on the touch screen can also be personalized for color, posi-tion, size, etc.
Sparkon Press Brake Toolings have the best qualities for applications where very high wear and extreme load bearing occur. Provides highest wear resistance on the tool surface (HRC 60-65) Lowers the friction on the shoulder radii (by com-pound layer lubricity) Has high tensile strength - 1150 N/mm2 Adds corrosion resistance to tooling
