SR5

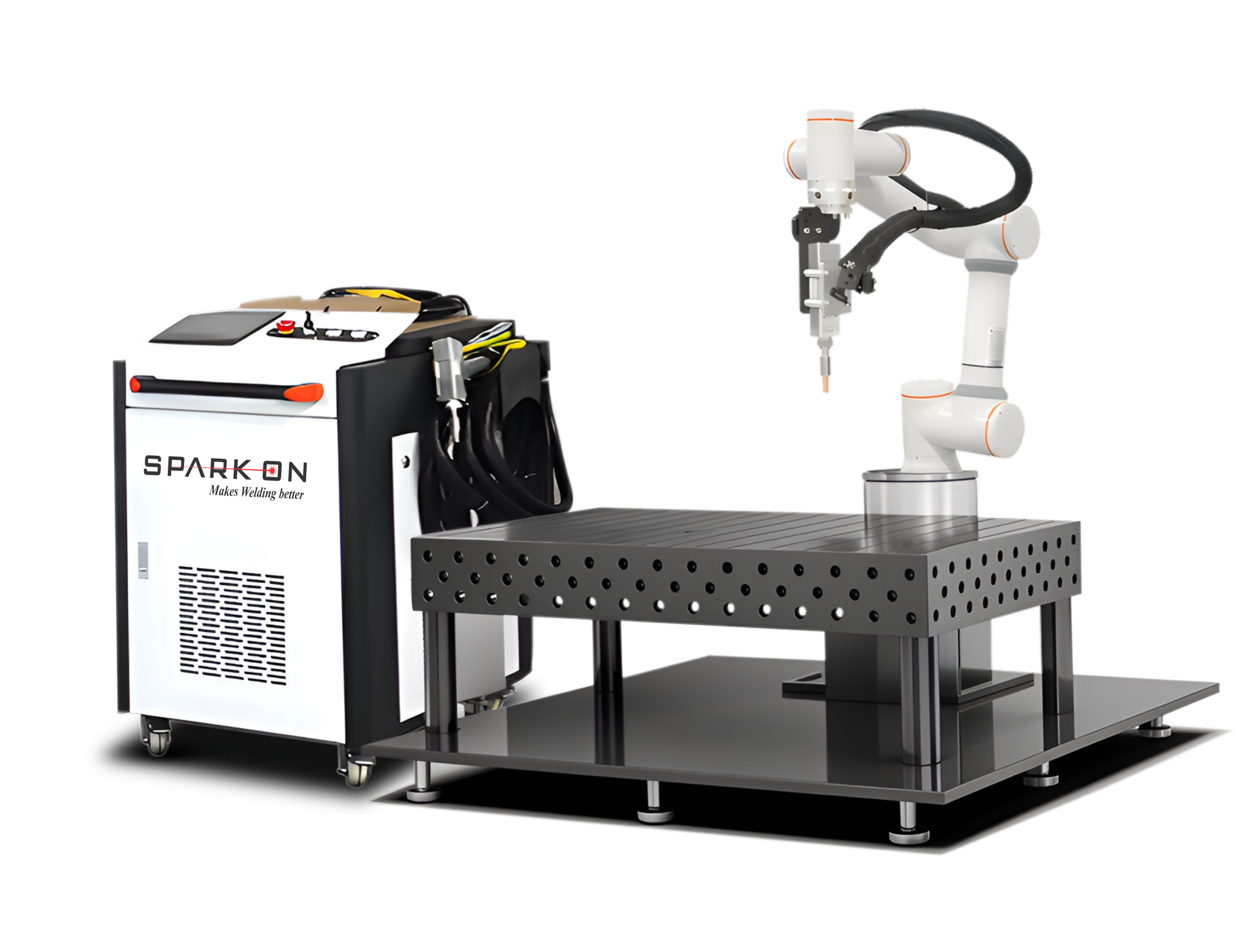

Cobot Arm

Request A Quote
OT Series

Core Technology

SR5 took the lead in obtaining the first CR certification in the field of cobots.It adopts a self-developed real-time control system, which integrates fully upgraded features such as flexibility, safety, flexibility, and ease operation, as well as excellent industrial-grade precision and stability.

Features

  • ► Excellent Performance Efficiency First
  • ► Efficient Protection Perfect Adaptation
  • ► Flexible Deployment No Entry Threshold
  • ► Complete Ecosystem Convenient Integration


Technical Parameter


Specification 1 Payload 5kg
  Reach 922mm
Degrees of freedom 6 rotating joints
HMI 10.1 inch teach pendant or mobile terminal web app
Movement Repeatability +0.02mm
  Pose repeatability oer ISO 9283 +0.03mm
Axis movement Working range Maximum speed
1 axis 1175° +180°/s
2 axis c85”/ -265° +180°/s
3 axis 1150° +180°
4 axis -85°/ -265° +180°/s
5 axis 1175° +180°/s
6 axis 1175° +180°/s
Typical TCP speed 1m/s
Features IP classification IP54(IP65 Optional)
  Noise < 65db
Robot mounting Any orientation
I/O Ports Digital input (DI) 2 digital output (DO) 2 analog input(AI) 2 analog ouput(AO) 2 High speed pulse input 2
Tool I/O power supply 24V/1.5A
Physcial Footprint 149mm
  Weight 22kg(Weight without wire)
Operating temperature 0-45°C
Operating humidity 900/oRH(non-condensing)
Materials Aluminium, Steel
