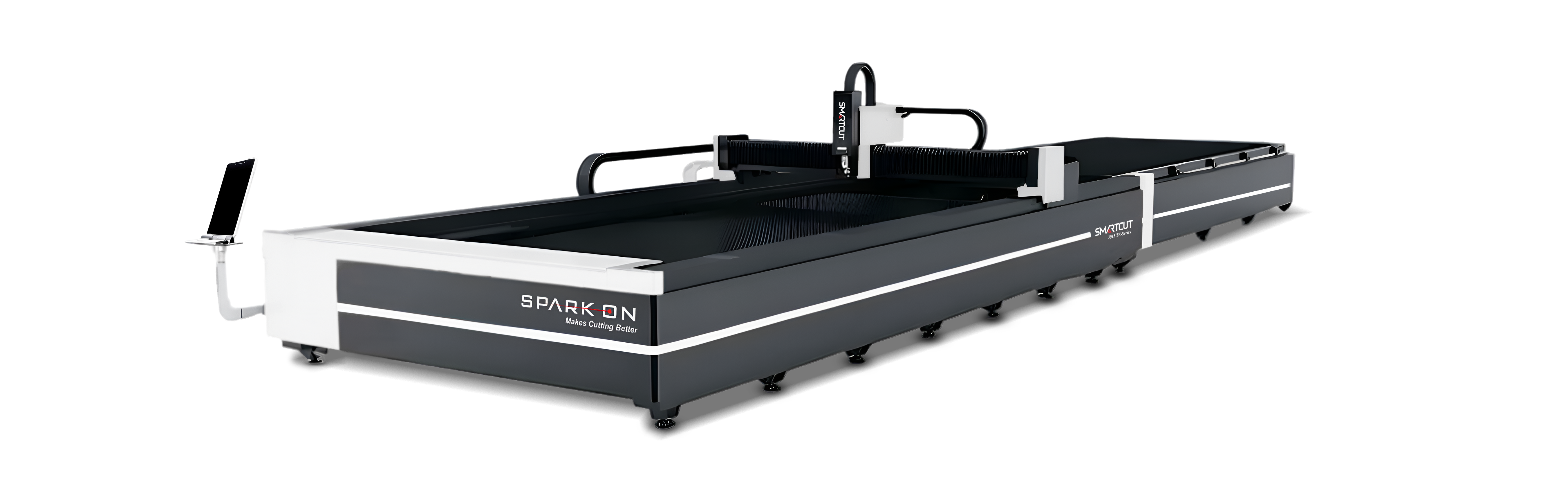

TE Series

FIBER LASER CUTTING MACHINE

OT Series

Core Technology

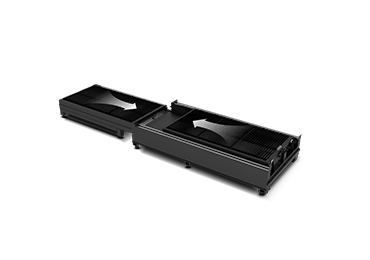

Faster Exchange Speed

Equipped with a six-sided steel track, the pilley and the track are inlaid closely, and the built-in pulley runs smoothly. the fastest can achiee a complete exchnage of 10S.

Intelligent Control System

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.



Technical Parameter


Model TE-3015 TE-4020 TE-6020 TE-6025 TE-6525
Working Area 3050x1525mm 4050x2025mm 6050x2025mm 6050x2525mm 6550x2525mm
Power 1000W-20000W
Positioning Accuracy ±0.03 mm
Repeated Positioning Accuracy ±0.02 mm
Max. Moving Speed 100-150m/min


Cutting Samples
