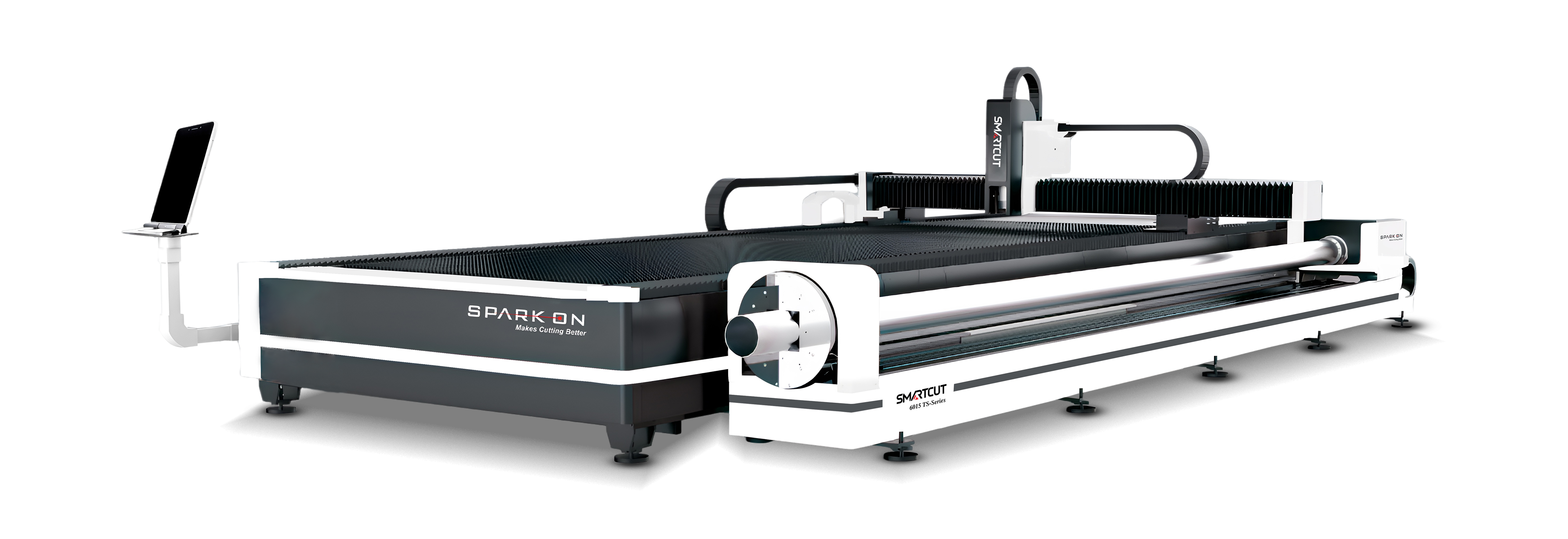

TS Series

FIBER LASER CUTTING MACHINE

OT Series

Core Technology



  • Bearing Height
    single claw has large thrust and strong bearing capacity.
  • Easy To Debug Jaws
  • High Rigidity
    Barrel Structure Design,high support rigidity,stable and strong.

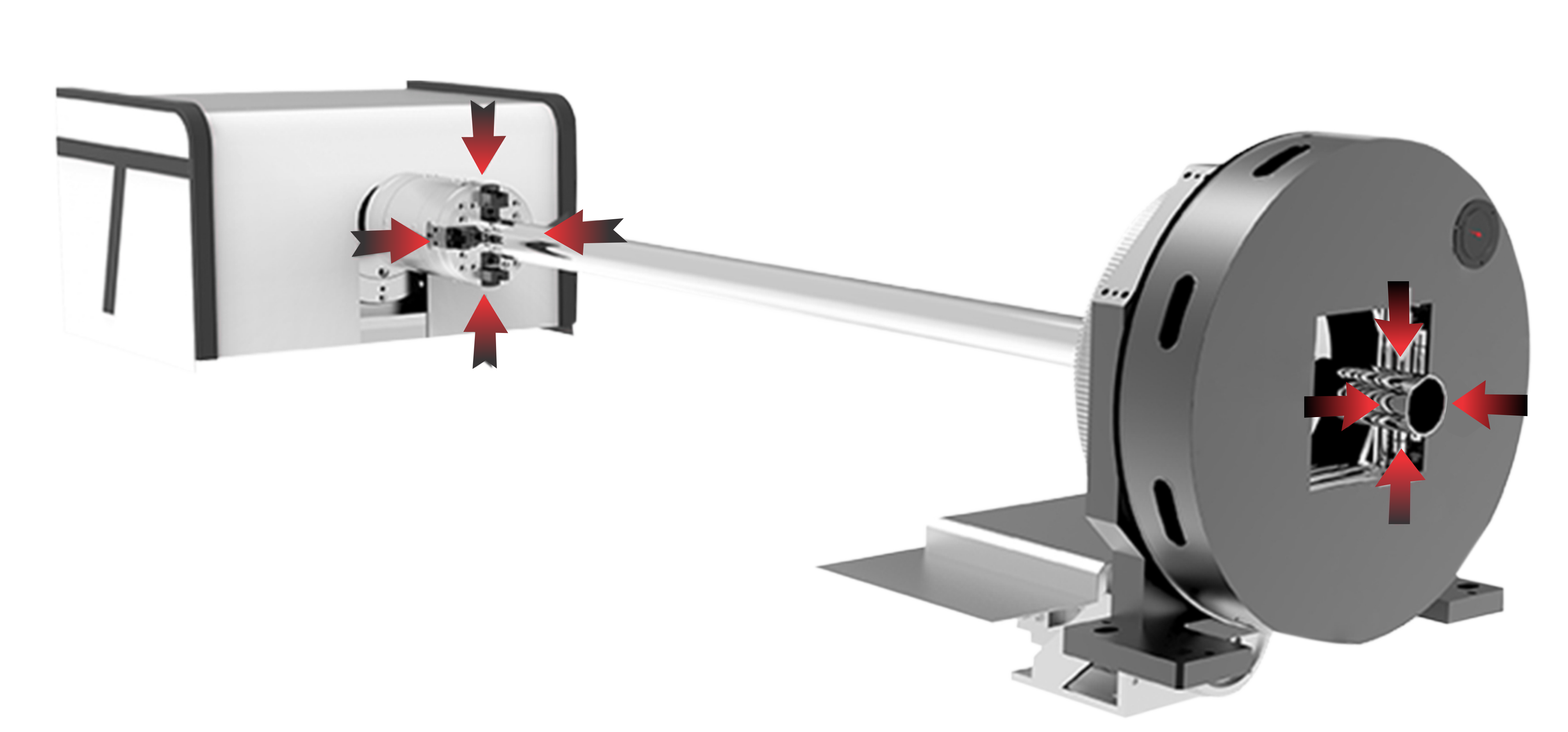

  • Special-Shaped pipe Clamping
    Optional Clamping Claw for various profiles to keep teh pipe from slipping


Technical Parameter


Model TS-3015 TS-4015 TS-6015 TS-4020 TS-6020 TS-6025 TS-8025
Working Area 3050x1525mm 4050x2025mm 4050x2025mm 6050x2025mm 6050x2025mm 6050x2525mm 6050x2525mm
Positioning Accuracy ±0.05 mm
Max. Moving Speed 100m/min 120m/min
Repeated Positioning Accuracy ±0.03 mm
Tube Size Range φ10~φ225mm φ10~φ165mm φ15~φ225mm, φ15~φ165mm

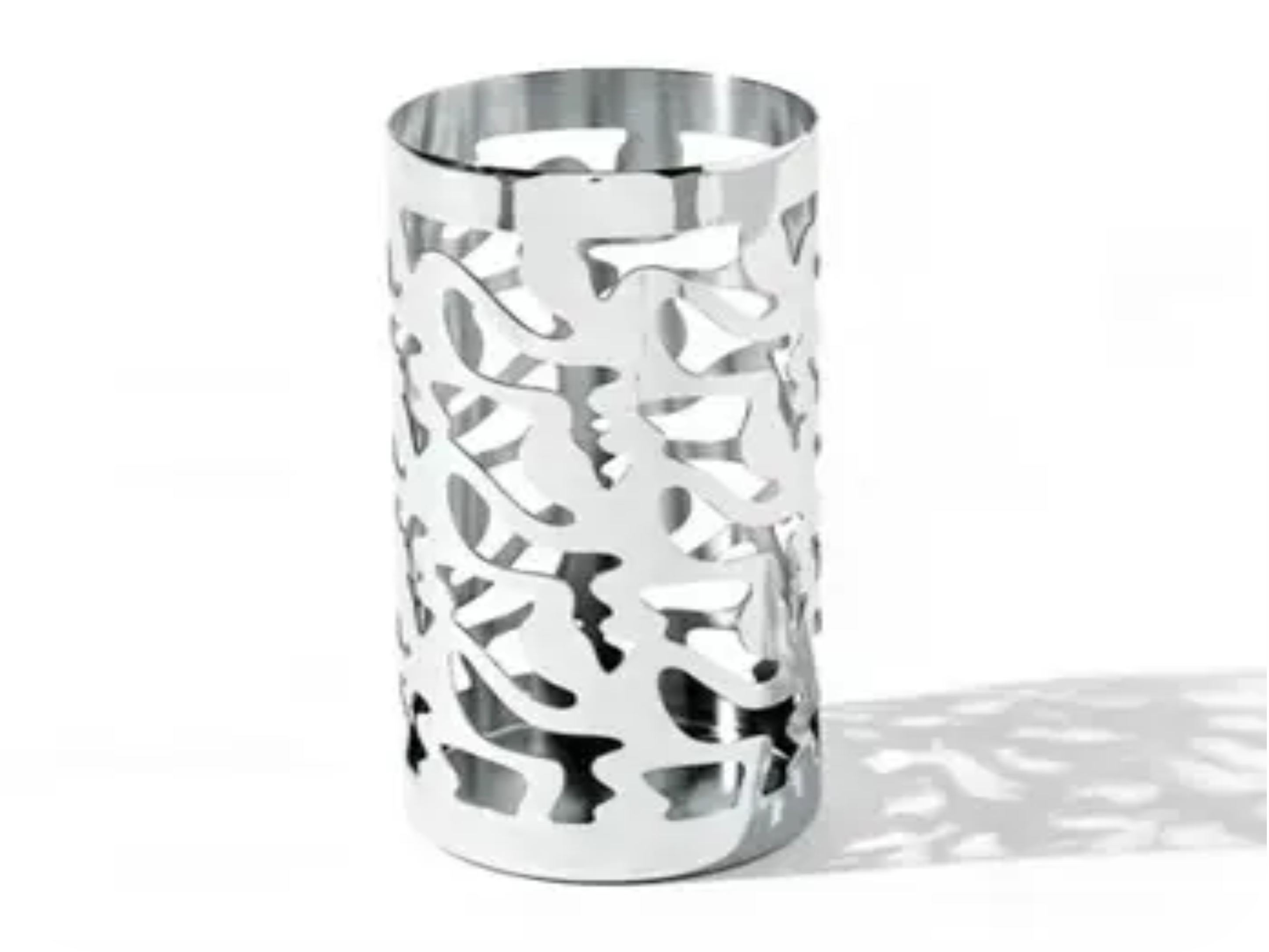

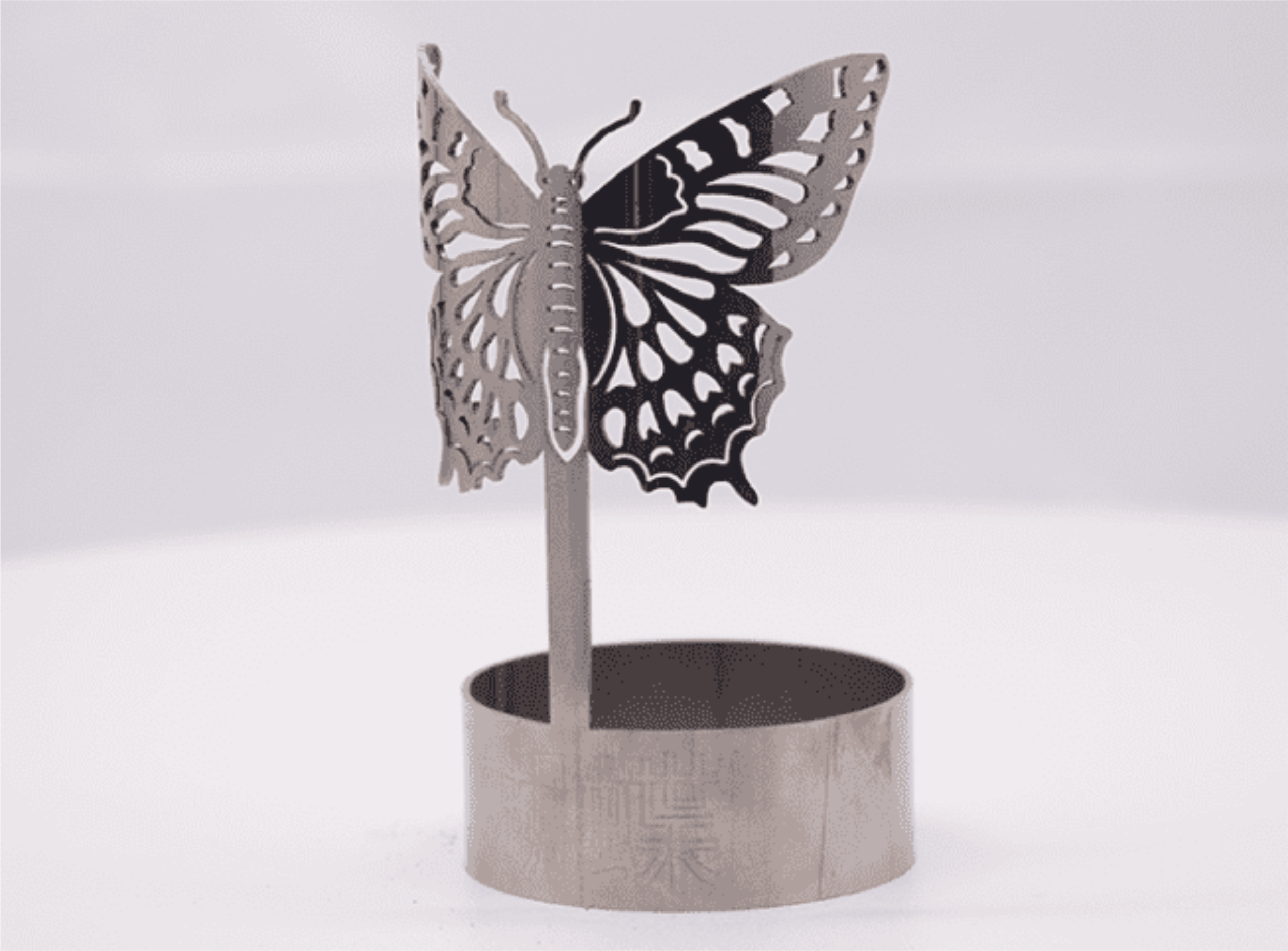

Cutting Samples
